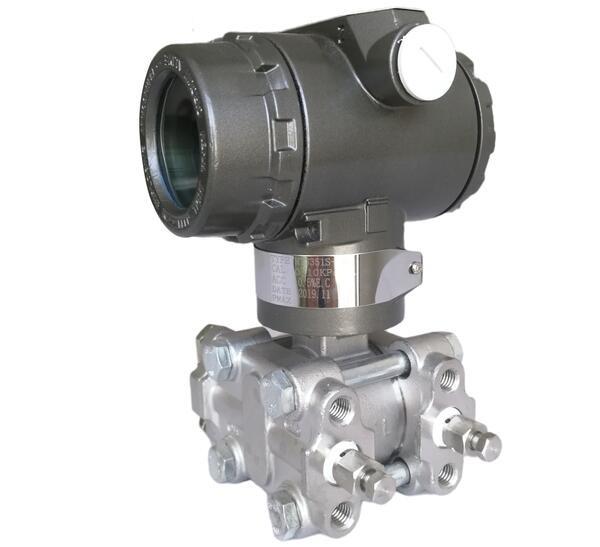

China Smart Differential Pressure Transmitter 4-20mA Hart Output Low Price DP Transmitter Sensor

1. Overview

Differential pressure transmitters measure the difference between two pressures.

This equipment will sense the difference in pressure, between two ports and produce an output signal, with reference to a calibrated pressure range.

The industrial differential pressure transmitters are made of two housings.

The pressure sensing element is housed in the bottom half, and the electronics are housed at the top half.

It will have two pressure ports marked as “High” and “Low”.

It is not compulsory that the high port will be always at high pressure and the low port always at low pressure.

2. Features

• Capacitive sensors
• Adopt high-tech machinery processing microelectronics
• The sensors outputs capacitance signal, direct interface with digital systems
• High accuracy, better than ±0.1%(Analogue signal) Linear output: ±0.075%(Digital intelligent signal)
• High turndown ratio: 10:1~100:1
• High stability & reliability
• Good unidirectional over voltage capability
• Improved self-diagnosis & remote setting communication function
• Multi-parameter and multi-methods LED display

3. Technical Parameters

• Accuracy: ±0.5%, ±0.075%
• Dead zone: None(≤0.1%)
• Stability: Less than the absolute value of basic error of maximum range with 6 months
• Vibration Effect: With 200Hz vibration frequency and error that of ±0.05%/g upper limit of measuring range in arbitrary axis.
• Power Supply: <0.005%/V output range

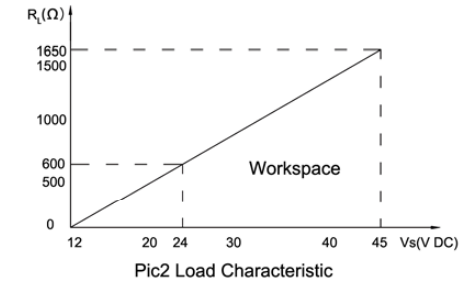

• Load Effect: No load effect under stable power supply

4. Other Parameters

• Isolation Diaphragm: 316L Stainless Steel, Hastalloy C, Monel or Tantalum
• Venting/Drain Valve: 316L Stainless Steel, Hastalloy C, Monel
• Flange & Joint: 316L Stainless Steel, Hastalloy C, Monel
• Contact Medium O-Ring: Chemigum, Fluorous Rubber
• Filliing Liquid: Silicon Oil or Inert Oil
• Bolt: 316 Stainless Steel
• Electronic Shell Material: Low Copper Aluminum Alloy
• Impulse Connection: Flange 1/4NPT, Center Distance 54mm, Joint 1/2NPT or M20*1.5 Male Thread Ball Cone Seal, Center Distance with Joint 50.8, 54, 57.2mm(NPT Spinal Canal Thread According to GB/T12716-91)
• Signal Wire Connection Hole: G1/2’’, M20*1.5
• Weight: 3.9KG(Standard)

5. Configuration

ML3000W Micro Differential Pressure Transmitter:

The max static pressure is 4MPa, the min measuring range is 0-0.125~1.5KPa.

They can shift to a negative pressure transmitter.

Medium:liquid, gas, steam.

Melan Measurement & Control Instruments is located in Shanghai City. It is a high-tech manufacturer specialized in the design, development, manufacturing and sale of measurement and control instruments.

Our products are widely used in various fields, including electricity, chemical industry, metallurgy, brewing, oil and gas, textile, water conservancy, environmential protection, etc.

We own independent-courtyard modemized manufacturing workshops and an open office building. Melan has accumlated production and management experience in instruments from European and American and domestic famous companies.

We own first-class talent team, and all the products have reached advanced level at home and abroad. We provide our customers with complete and professional test control solutions and high-tech and high-quality products.

Melan is your reliable friend and partner. We are willing to try our best as dedication and perfection as motivation.
